Transmitters - Scale components

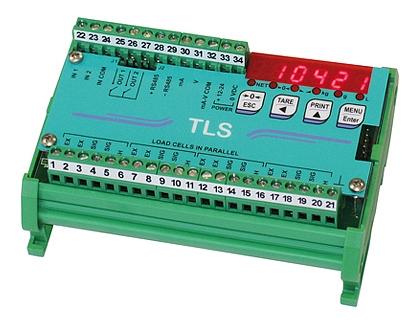

TLS Digital-analog weight transmitter
Weight transmitter (indicator) with 6-digit LED display (8 mm) Four buttons for reset, menu, etc. Dimension: 123 x 92 x 50 mm.
- 16-bit Analog output: 0/4-20 mA; 0-5/10 V; ±5/10 V
- RS485 port (Modbus RTU/Laumas ASCII protocol)
- 2 logic inputs, 2 optorelays logic outputs
- Mounting on Omega/DIN rail for back panel or junction box
- Box versions: IP67, IP67 ATEX II 3GD
- A/D converter 24bit (16000000 points) 80 Hz
- Display range 999999
Functions
- CE-approval
- Class III
- External adjustment
- LCD-display
- Load sensor
- Mains adaptor
- Plastic
- RS-232
- Warranty 1 year
