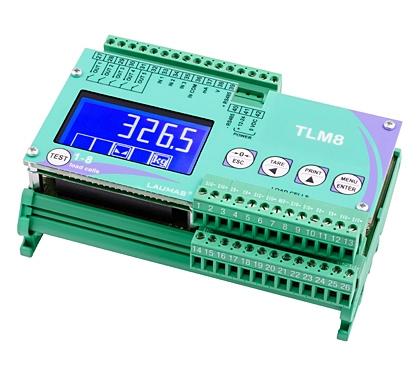

TLM8 Digital-Analog

8 independent reading channels for load cells. Weight transmitter with backlit graphic LCD display, 60x32 mm, 128x64 pixels. Four-key keypad for the system calibration. TEST key for direct access to the diagnostic functions. Dimensions: 148 x 92 x 60 mm.

The TLM8 offers the benefits and performance of an advanced digital weighing system even using analog load cells. Digital equalization. Automatic diagnostics.

·         6-bit Analog output: 0/4-20 mA; 0-5/10 V

·         RS485 port (Modbus RTU/Laumas ASCII protocol)

·         3 logic inputs, 5 relay outputs

·         OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI

·         Mounting on Omega/DIN rail for back panel or junction box

·         8 channels A/D converter - 24bit (16000000 points) 4.8 kHz

·         Display rang e 999999

Functions

  • CE-approval
  • OIML-approved
